Metro Station Swing Gate Control Board with 24 Pairs Infrared Sensors and RS232/RS485/CAN Communication for High Safety

Markenbezeichnung:	CSJY
Modellnummer:	GJMC1810
MOQ:	2Stk
Preis:	Negotiate
Verpackungsdetails:	Kartons
Zahlungsbedingungen:	T/T, L/C

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Herkunftsort:

China

Zertifizierung:

CE, Rohs

Eingangsspannung:

Gleichspannung 24 ~ 30V

Beziehen Sie gegenwärtiges:

Einseitig 3A (abhängig von der Entscheidung bei geringer Last)

Infrarot-Sensoreingang:

Infrarot-Sensoreingang PNP|NPN NO|NC 12V|24V 12 unabhängige IR-Schnittstellen an Bord. Externe IR-Er

Schnittstelle zur Brandbekämpfung:

Integrierter NPN-Eingang

Ton- und Lichtsteuerung:

Ton- und Lichtsteuerung Begrüßungslicht, Passlicht, RGB-Tricolor-Licht, Statuslicht Lautsprecher (8

Hardwareschutz:

Unterspannung, Überstrom, Eingangsumkehr

Versorgungsmaterial-Fähigkeit:

5000 Stück/Monat

Hervorheben:

24 Pairs Infrared Sensors Swing Gate Control Board

RS232/RS485/CAN Communication Turnstile Gate Controller

High Safety Hardware Protection Metro Station Gate Controller

Produkt-Beschreibung

Metro Station Swing Gate Control Board with 24 Pairs Infrared Sensors Interface

Product description

The Metro Station Swing Gate Control Board is a state-of-the-art access control solution designed to enhance the security and efficiency of metro station gates. Featuring support for up to 24 pairs of infrared sensors, it ensures seamless detection of passengers while maintaining optimal control over the gate’s movement and safety protocols. The controller uses advanced signal processing technology to manage various operational aspects of the gate system, ensuring reliability and minimal downtime in high-traffic environments such as metro stations.

Technical parameter

Input Voltage	DC 24 ~ 30V
Reference Current	Single-sided 3A (depending on the light load decision)
Infrared sensor input	PNP\|NPN NO\|NC 12V\|24V 12 independent IR interfaces on board External IR expansion board available
Communication Interface	RS232/RS485/CAN
Sound and light control	Welcome light, pass light, RGB tricolor light, status light Speaker (8W 4Ω), Buzzer (12V 100mA)
Hardware Protection	Under-voltage, over-current, input reversal
Passage detection	Tailgating Breaking the gate Retrograde Detention
Firefighting interface	On-board NPN input

Key Advantages

High Sensor Compatibility: Supports up to 24 pairs of infrared sensors, providing accurate detection of passenger movement.
Advanced Communication Interface: Equipped with RS232 and RS485 communication ports, enabling easy integration with other systems like central monitoring stations and ticketing machines.
Robust Control System: Handles gate opening/closing mechanisms smoothly while ensuring security features such as anti-tailgating and anti-pinch detection.
Precise Motion Control: The gate’s movement is finely controlled, offering a smooth passenger experience without delays.
Durability: Built with durable components to withstand frequent use and harsh environmental conditions in high-traffic metro stations.
Energy Efficient: Designed to minimize power consumption, making it an eco-friendly option for public transportation systems.
Customizable Settings: Users can adjust sensor sensitivity, gate speed, and other parameters for optimal performance.
Integration Capabilities: Easily integrates with existing security and access systems, such as biometric scanners or RFID readers.
Real-Time Monitoring: Provides feedback and diagnostics for maintenance and monitoring purposes, ensuring the system remains in peak condition.

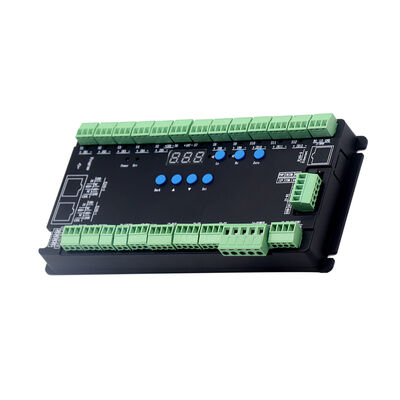

Metro Station Swing Gate Control Board with 24 Pairs Infrared Sensors and RS232/RS485/CAN Communication for High Safety 0

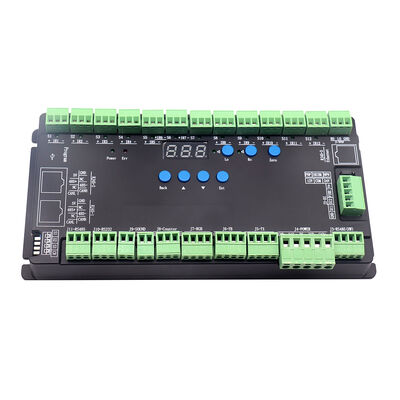

Metro Station Swing Gate Control Board with 24 Pairs Infrared Sensors and RS232/RS485/CAN Communication for High Safety 1

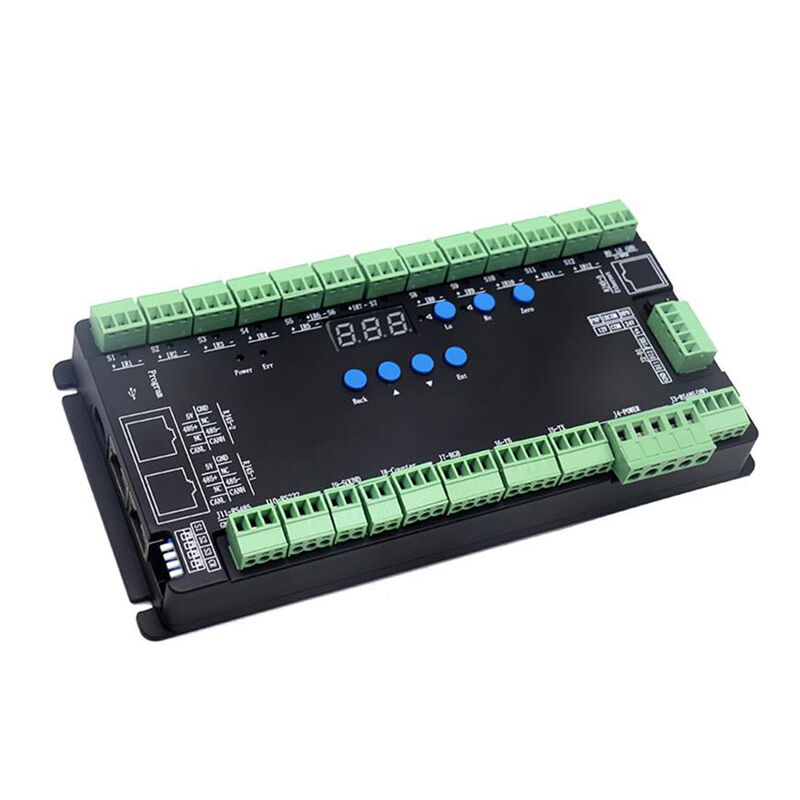

Metro Station Swing Gate Control Board with 24 Pairs Infrared Sensors and RS232/RS485/CAN Communication for High Safety 2

Application

This control board suitable for swing gate, speed gate, sliding gate hign-end turnstile gate's application.

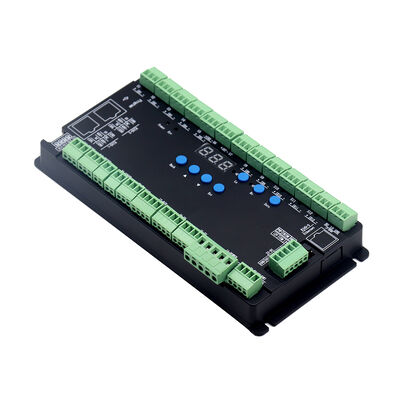

Metro Station Swing Gate Control Board with 24 Pairs Infrared Sensors and RS232/RS485/CAN Communication for High Safety 3

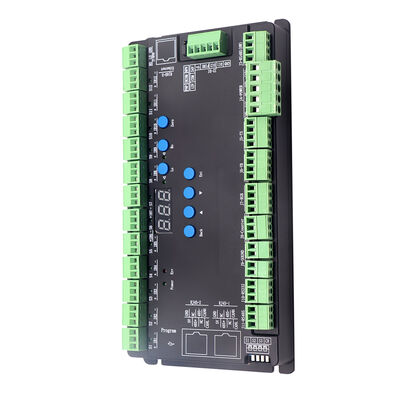

Metro Station Swing Gate Control Board with 24 Pairs Infrared Sensors and RS232/RS485/CAN Communication for High Safety 4

RFQ

1. How about your company's actual strength?
We have more than 100 employees, a R&D group with 50 people,1 office and 1 factories. Factories and office buildings are larger than 1500 square meters.

2. How about the payment method?

Standard products: 30% deposit, 70% balance payment before shipment.

3. How long is your warranty period?

One-year guarantee & Life-time technology support.

4. How do you do after-sale service?
We provide life-time technology support online, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

5. How long is your warranty period?
One-year guarantee & Life-time technology support
