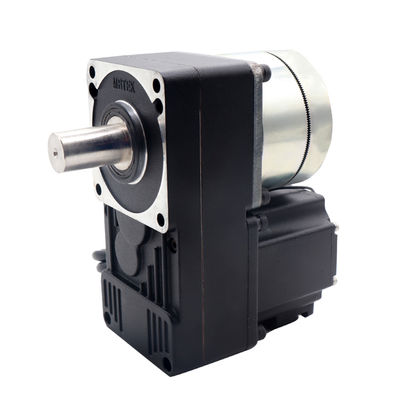

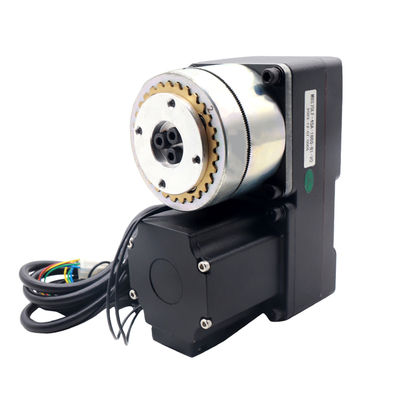

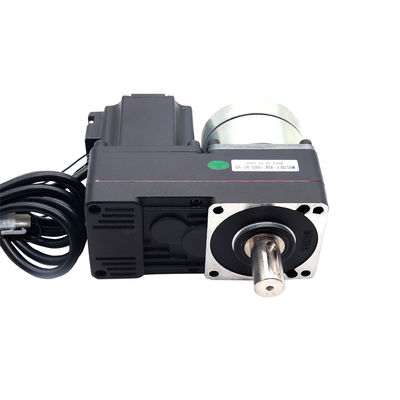

DC24V 40W BLDC Servo Motor with 1:60 Gear Ratio and Clutch for Anti-collision Swing Gate

Markenbezeichnung:	CSJY
Modellnummer:	MBS70LF-40A-1860-B1-V7
MOQ:	2pcs
Preis:	Negotiate
Verpackungsdetails:	Kartons
Zahlungsbedingungen:	T/t

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Herkunftsort:

CHINA

Zertifizierung:

Dokument:

Nennspannung:

DC24V

Nennleistung:

Bewertungsstrom:

Bewertungsgeschwindigkeit:

1800 U / min

Zahnradverhältnis:

Ausgangsdrehmoment:

9,2 NM

Anwendung:

Schwingtor

Besonderheit:

Mit Kupplung

Versorgungsmaterial-Fähigkeit:

1000 Prozent/Monat

Hervorheben:

1:60 Gear Ratio BLDC Servo Motor

with Clutch Speed Gate Motor

Anti-collision Swing Gate Motor

Produkt-Beschreibung

DC24V 40W BLDC Servo Motor 1:60 Gear Ratio with Clutch For Anti-collision Swing Gate

Introducing the DC24V 40W BLDC Servo Motor with 1:60 Gear Ratio and Integrated Clutch, a robust and intelligent drive solution engineered specifically for the safety and durability demands of modern swing gate systems. This advanced motor combines the superior performance of a 24V Brushless DC (BLDC) system with a high-torque 1:60 gear reduction and a critical safety clutch mechanism.

The core of this motor's design is its anti-collision protection. The built-in clutch automatically disengages the gear train upon encountering an obstruction, preventing damage to the gate, the motor itself, and, most importantly, ensuring user safety. Paired with a matching servo controller, this system offers precise control, smooth operation, and reliable performance for high-cycle automated access points.

Technical Specifications

Rated voltage	DC24V
Rated power	40W
Rated current	3A
Rated speed	1800rpm
Gear ratio	1:60
IP grade	IP54
Output torque	9.2Nm

Key Features

24V DC Safe Operation: Low voltage power supply ensures enhanced safety for users and installers, compliant with standard security and gate automation requirements.
High-Torque Output: The 1:60 planetary gear ratio provides exceptionally high output torque (approx. 10-12 Nm), capable of handling heavy swing gates with ease, even in challenging conditions.
Integrated Anti-Collision Clutch: Mechanically disengages when an obstacle is met, protecting the motor and gate from damage and providing a crucial safety feature.
Efficient BLDC Technology: Brushless DC motor offers a long maintenance-free life, high efficiency, quiet running, and precise speed control compared to brushed alternatives.
Smooth & Controlled Motion: Works in tandem with a dedicated servo controller for soft starts and gentle stops, minimizing wear on the gate structure and hardware.
Durable Construction: Built with high-quality materials and often featuring an IP54 rating (or similar) for resistance to dust and water, ensuring reliable operation outdoors.
Overload Protection: Electronic safeguards in the controller protect against current overload and motor overheating.

Application
