Metro Station Retractable Flap Gate Control Board with 16 Pairs Infrared Sensors Interface

Markenbezeichnung:	CSJY
Modellnummer:	JMC1810
MOQ:	2
Preis:	Negotiate
Verpackungsdetails:	Kartons
Zahlungsbedingungen:	t/t

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Herkunftsort:

China

Zertifizierung:

Dokument:

Eingangsspannung:

Gleichspannung 24 ~ 30V

Nennstrom/Spitzenstrom:

Einseitig 3A (abhängig von der Entscheidung bei geringer Last)

Angepasster Motor:

Niederspannungs-Servomotoren

Encoder-Feedback:

Inkrementelle (Pulstyp)

Kommunikationsoberfläche:

RS232 / RS485 / CAN

Hardware-Schutz:

Schutz vor Überstromschutz gegen Kurzschlussschutz gegen Umkehrschluss

Lichtleistung:

Willkommenslicht, Passlicht, RGB-Dreifarbenlicht, Statuslicht

Solider Ertrag:

Lautsprecher (8W 4Ω), Summer (12V 100mA)

Infrarot-Eingang:

PNP|NPN NO|NC 12V|24V 12 unabhängige IR-Schnittstellen an Bord Externe IR-Erweiterungskarte verfügba

Eingangs- und Ausgangssignale:

2 Türöffner + 3 Erweiterungseingänge/Ausgänge

Hardware-Schutz:

Schutz Unterspannung, Überstrom, Eingangsverpolung

Multifunktionstasten:

Öffnen von Türen, Nullpunkt setzen, Werkseinstellungen wiederherstellen usw.

Betriebstemperatur:

-20°C | 55°C

Versorgungsmaterial-Fähigkeit:

5000 Stück/Monat

Hervorheben:

Retractable Flap Gate Control Board

Infrared Sensors Interface Control Board

Produkt-Beschreibung

Metro Station Retractable Flap Gate Control Board with 16 Pairs Infrared Sensors Interface

Product description

The Metro Station Retractable Flap Gate Control Board is a high-performance and intelligent gate controller designed specifically for use in high-traffic areas such as metro stations, bus terminals, and public transportation hubs. Engineered for seamless integration with 16 pairs of infrared sensors, this control board ensures precise pedestrian detection, enhanced security, and smooth gate operation. The board supports bi-directional access, anti-tailgating functions, and real-time fault diagnosis, making it an ideal core component for advanced access control systems.

Technical parameter

Input Voltage	DC 24 ~ 30V
Reference Current	Single-sided 3A (depending on the light load decision)
Infrared sensor input	PNP\|NPN NO\|NC 12V\|24V 12 independent IR interfaces on board External IR expansion board available
Communication Interface	RS232/RS485/CAN
Sound and light control	Welcome light, pass light, RGB tricolor light, status light Speaker (8W 4Ω), Buzzer (12V 100mA)
Hardware Protection	Under-voltage, over-current, input reversal
Passage detection	Tailgating Breaking the gate Retrograde Detention
Firefighting interface	On-board NPN input

Key Advantages

16 Pairs of Infrared Sensor Interface
Supports up to 16 pairs of IR sensors for precise detection of entry, exit, and tailgating attempts.
High-Speed Data Processing
Equipped with an advanced microcontroller for real-time control and rapid signal response.
Bi-Directional Passage Control
Allows for both entry and exit logic with customizable access rules.
Anti-Tailgating & Anti-Pinch Function
Enhanced logic control to prevent unauthorized trailing and to ensure passenger safety during gate movement.
Flexible I/O Interfaces
Multiple communication options including RS232/RS485, CAN, and optional relay outputs for alarm and door control.
Self-Diagnosis & Real-Time Monitoring
Monitors sensor states, motor conditions, and power supply in real-time; provides error codes and fault feedback.
Customizable Gate Logic
Compatible with various IC/ID card readers, facial recognition systems, and QR code scanners.
Stable Power Management
Designed with over-voltage, over-current, and short-circuit protection to ensure long-term reliability.
Compact Design for Easy Integration
Fits into standard flap barrier or swing gate chassis; simple wiring and installation.
Software Upgrade Support
Firmware can be updated via serial interface or remote module for future expansion or optimization.

Application

This control board suitable for swing gate, speed gate, sliding gate hign-end turnstile gate's application.

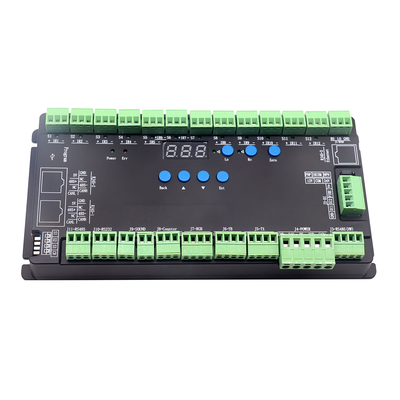

Metro Station Retractable Flap Gate Control Board with 16 Pairs Infrared Sensors Interface 0

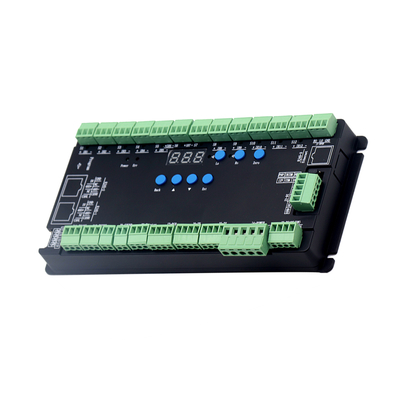

Metro Station Retractable Flap Gate Control Board with 16 Pairs Infrared Sensors Interface 1

RFQ

1. How about your company's actual strength?
We have more than 100 employees, a R&D group with 50 people,1 office and 1 factories. Factories and office buildings are larger than 1500 square meters.

2. How about the payment method?

Standard products: 30% deposit, 70% balance payment before shipment.

3. How long is your warranty period?

One-year guarantee & Life-time technology support.

4. How do you do after-sale service?
We provide life-time technology support online, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

5. How long is your warranty period?
One-year guarantee & Life-time technology support

For more further information welcome to contact us, whatsapp +86 15218146199
