Control Board Integrated Driver and Controller Function for Tripod Turnstile Gates

Markenbezeichnung:	CSJY
Modellnummer:	MBC2406
MOQ:	2
Preis:	Negotiate
Verpackungsdetails:	cartons
Zahlungsbedingungen:	T/T

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Place of Origin:

China

Zertifizierung:

Dokument:

Input power supply:

DC24V, dual power connection, 150W/6.5A on one side is recommended; Single power connection, 300W recommended

Adaptor motor:

DC brushless motor below 60W with 2400-line position feedback

Communication mode:

RS232 serial communication, supporting Modbus protocol

Power-off:

DC12V battery, or optional super capacitor module

Infrared sensor:

6 independent interfaces, PNP, NPN normally open, open collector type

Voice output:

external 8W 4Ω speaker

Anti-pinch protection:

Current+position double detection, adjustable sensitivity

Control effect:

The open speed is fast, and it is stable and does not shake

Working environment:

-20℃ ~ 55℃

Application:

swing gate, speed gate, tripod turnstile, sliding gate

Supply Ability:

5000pcs/month

Produkt-Beschreibung

Control Board Integrated Driver and Controller Function for Tripod Turnstile Gates

Product description

This system consists of access gate control board, brushless servo motor, servo control technology, real-time

detection of motor position, self-learning load curve without external encoder, physical anti-pinch protection and

adjustable sensitivity. Support access mode settings such as card swiping, freedom and prohibition at the entrance and exit;It has the logic detection of illegal intrusion, trailing traffic, detention, reverse traffic, infrared anti-pinch, etc., and is suitable for access gate equipment such as speed gate/swing gate, flap gate/sliding gate, etc.

Technical parameter

Input power supply	DC24V, dual power connection, 150W/6.5A on one side is recommended; Single power connection, 300W recommended;
Adaptor motor	DC brushless motor below 60W with 2400-line position feedback
Communication mode	RS232 serial communication, supporting Modbus protocol
Power-off	DC12V battery, or optional super capacitor module
Infrared sensor	6 independent interfaces, PNP, NPN normally open, open collector type
Voice output	external 8W 4Ω speaker
Working environment	-20℃ ~ 55℃, humidity below 90% (no condensation)

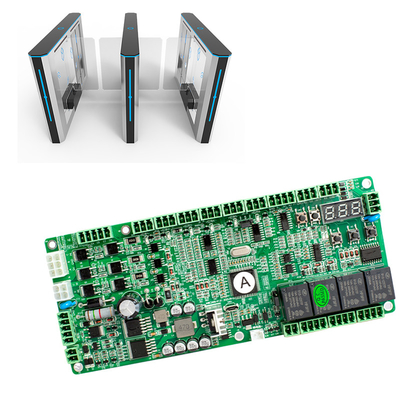

Control Board Integrated Driver and Controller Function for Tripod Turnstile Gates 0

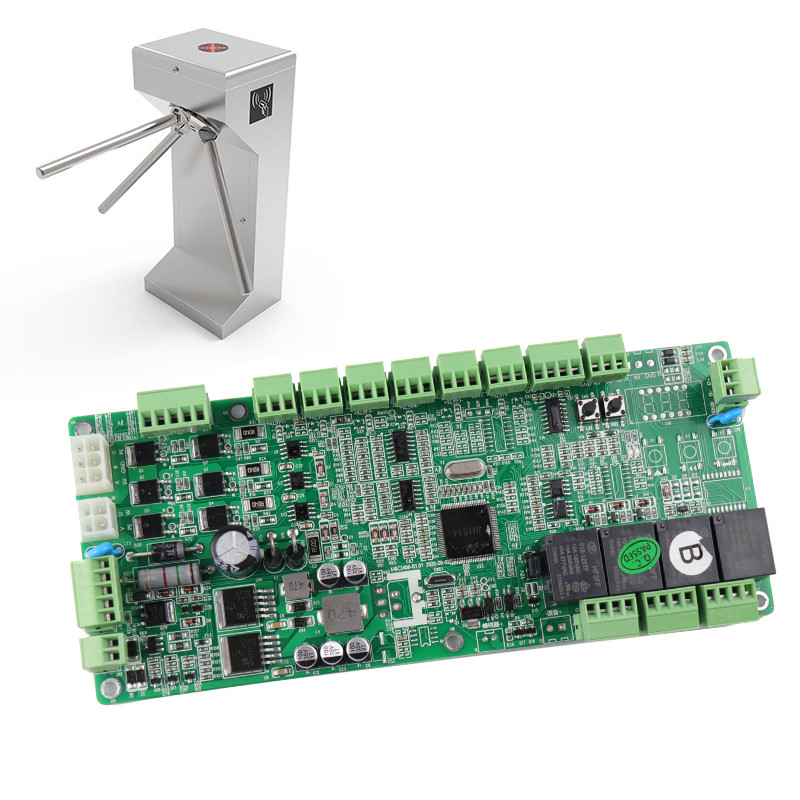

Control Board Integrated Driver and Controller Function for Tripod Turnstile Gates 1

Application

This control board suitable for swing gate, speed gate, sliding gate, tripod turnstile, etc

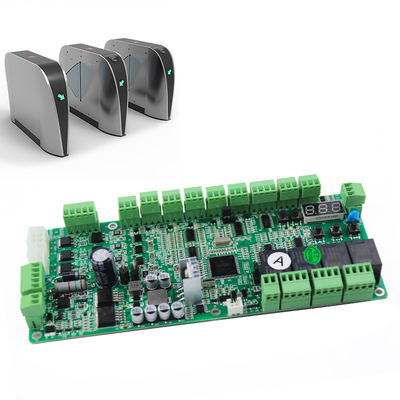

Control Board Integrated Driver and Controller Function for Tripod Turnstile Gates 2

Control Board Integrated Driver and Controller Function for Tripod Turnstile Gates 3

RFQ

1.Q:Can i get sample ?

A:We are hornered to offer you sample for quickly check .

2.Q:Do you have the product in stock ?

A:All standard models we got in stock .special products are manufactured according to your requirement .

3.Q:When do you delivery ?

A:It usually take 3-7 working days .but the exactly time vary from different order at the different time .

4.Q:How long can it works ?

A:Properly use can work for 3 years .

5.Q:Warranty period ?

A:18 months after the days then the products leave our factory .

6.Q:Payment period ?

A:In general.30% by T/T of the amount as deposit .70% by T/T of the amount need be paid within one week after the day when you receive the copy of the B/L by email or consultations .
